Accurately Building Steve Paper's 3ft Galactica, Part II

Discussion in 'Science Fiction & Fantasy' started by DJPinter, May 10, 2014.

  1. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    This post is a continuation of my adventure building Steve Paper's 3ft Battlestar Galactica. I'll be talking about my experience building the model's mid-ship section. If you want to see how this party started click on over to my first post, "Sometimes, you have to roll a hard six."

    Having finished the lower bow I was stoked to start the mid-ship. The assembly guide shows that the construction starts with the keel so I started cutting the hull pieces, 1a - 1f. Since the port and starboard pieces are mirror images of each other I compared 1a to 1b and 1d to 1f. 1a and 1b matched perfectly, but 1d and 1f didn't.

    IMG_0309.png IMG_0310.png
    That second picture shows 1d behind 1f. I asked Steve about this. He said that the gap is pretty small and I should damn the torpedoes! Full steam ahead! (ok, that was my interpretation :)). If the gap bugs me he would rework the part and sent it to me. Hopefully I won't have to take him up on that offer.

    So I glued 1a - 1e together using my embossing method to get a smooth hull. Yes, I know Zathros, cut the damn tabs off. *sigh* Next time. Then I noticed that the lined file (I'm building the line-free model, but using the lined-file as a guide) only has fold lines on the "valley" and there's no indication where to put the formers LH2 - LH5. While I mulled over what to do I about that I started cutting out and reinforcing the formers LH1 - LH6 and CH1 - CH6.

    What this model needs is MORE STICKS!!

    It didn't take long to reinforce LH1 - LH6. CH1 - CH6, however, took 3 - 4 hours...for each part. Pictures of those pieces in the internal sub-assembly are below. But first, I'd like to delve into the world of relativity.

    The assembly guide shows where the formers are in the keel, but doesn't give an measurement so I decide to calculate the formers' positions relative (see what I did there! lol) to a spot on the keel.

    I knew that the pod bay arm sub-assembly is 3cm across (arm assembly is in the next post) so grabbing my trusty metric ruler and the assembly guide I did some calculations.


    I contacted Steve to verify my findings. He says that everything was correct except for CH6. I calculated 10.3cm but it should be 10.5cm. YES!! OBSESSIVENESS FOR THE WIN!!

    He also reminded me that CH7 - CH10 have guide marks for each CH former. <headdesk>

    Two days (6 hours project time) I have the CH sub-assembly is complete.

    IMG_0340.png IMG_0341.png IMG_0342.png IMG_0343.png
    The blue/gray areas are where the pod bay arms will be installed.

    That's it for tonight. The landing pod arms are next.
    djp
    aka DataZombies
    Last edited: May 10, 2014
    zathros, bgt01, Cforrest900 and 2 others like this.
  2. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,478
    Likes Received:
    3,389
    That is one of the advantages of removing the tabs. If you come across a problem, either by design fault, or accrued intolerance, it becomes easy to print out another part with the same pattern and fit it in, and the model is none the worse for it. We had a program at Sikorsky Aircraft called, "File to Fit". Sounds scarey, eh? It is coming out really nice, and Steve, well, your working with the best, so it's all good. :)
    Revell-Fan likes this.
  3. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    Pardon the pause, I've been gorging myself on UHU02's site (my hard drive just burped in Japaneese). I think I've probably have enough patterns for there rest of my life...we'll see.

    Anyway, back to Steve's BSG.

    I needed a break somewhere between reenforcing CH-5 and CH-6 so I decided to tackle the pod arms. I completed the the fore and aft sub-asseblies and noticed that the arms had vertical and horizontal wiggle. If there's one thing I really hate it's wiggly pod arms. I traced the bad fit to my using 3 layers of #110 card stock for the S1 strips. To get the required thickness for inside of the arm sockets (AS-1 - AS-4) and LBAC-1 and LBAC-2 I needed 5 layers. I disassembled the arm sockets, reprinted parts and redesigned the internals. Here's a combination of the two attempts.

    I started off the pod arm assemblies with reinforcing LBA1 - LBA4.

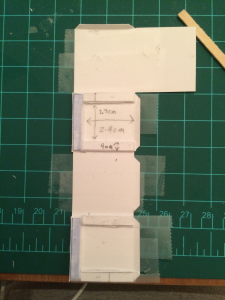

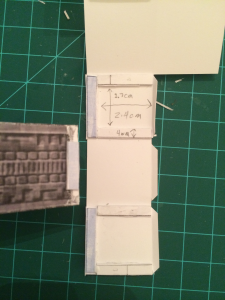

    Yup. That's right...more sticks :D. Using the outside of one of the LBAs I measured out where the bends would be in the LBA1-1 - LBA4-2; 3.2cm and 4.4cm.

    Using my sharpened chopstick I scored parts and cut them out. After the LBA is attached I added sticks to the inside where the arm will attach to the pod, see the first picture in this post. While all this work was going on I laminated 5 layers of #110 card stock for the S1 strips and my modifications. What the heck did I modify? Glad you asked.

    Instead of just having stoppers (the S1 strips) I included runners; 4mm strips that run perpendicular to the stoppers. This restricts lateral movement and guides the arm in the arm sockets and the sockets in the...whatever the LBAC-1 and LBAC-2 are. Here you can see that I have cut down the S1 stopper on the arm to 2.2cm (ignore the 1.7cm measurement that's on the picture, 2.2cm is a better fit). To reduce the friction between the parts and preserve the printing on the parts I use Scotch tape on the inside of the arm sockets.
    IMG_0346.png IMG_0347.png

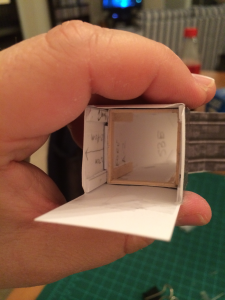

    Since I have a runner on the bottom of the arm socket I had to cut off the glue tab on the top of the part (see Zathros, I cut a tab off!). Here's two shots of the sub-assembly with the runners. The stoppers (S1) on the arm sockets are also only 2.2cm wide.
    IMG_0348.png IMG_0349.png

    Allow me to point out a discrepancy in the assembly guide. No matter how you rotate the arm sockets, you can't get the part 's seam to be on the top.

    Here's the runner modification I made to LBAC-1 and LBAC-2. The glue tab on this part is ok :p.

    Using runners also fixed another possible problem I noticed. If an arm is pushed in while the opposite are is extended the arm socket could become stuck in an LBAC because the arm socket stopper would have gone into the LBAC too far. This pic illustrates the issue and also shows that the runners prevent this from happening.

    The resulting sub-assemblies have almost zero lateral movement. Hopefully the runners will help the arms support the pods.
    Last edited: Jun 9, 2014
    zathros and Revell-Fan like this.
  4. F131

    F131 Member

    Joined:
    Mar 27, 2008
    Messages:
    475
    Likes Received:
    1
    Great looking job so far!
  5. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,478
    Likes Received:
    3,389
    Very nice, and this kind of build report is very helpful for those that follow. :)
  6. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    Hello again. I needed a break from learning Swift so I did some fit testing.

    Since my last post I put finished the keel and installed LH-1 - LH-6.

    If you read the 1st post in this stream you'll remember that I obsessed about the spacing of the LH and CH formers. Well, I forgot the cardinal rule of carpentry; Measure twice, cut once. For me make that measure four times, take the average and add 5%.

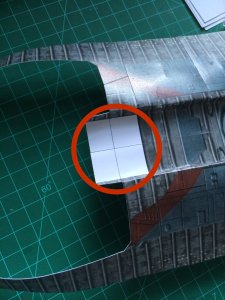

    Yup, they're off. *sigh* I was able to slice off LH-2 and reposition it. LH-3 and LH-4 are OK, I think. I'll decide whether to move LH-5 later. First I've got a question.

    What the heck am I supposed to do with this?

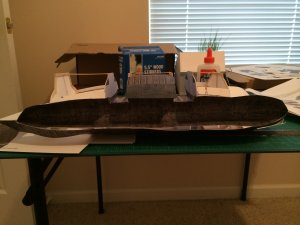

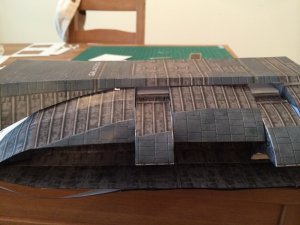

    Here's a test fitting of the lower bow into the keel.
    IMG_0422.jpg IMG_0423.jpg

    How far is the lower bow supposed to be inserted? Next up is mid-bow added to the ship..
    IMG_0424.JPG IMG_0425.jpg

    ...and the upper bow on top.
    IMG_0426.JPG IMG_0427.jpg

    Everything looks pretty good.
    Last edited: Jun 13, 2014
    bgt01 and Cforrest900 like this.
  7. Danscrew

    Danscrew Danscrew

    Joined:
    Oct 10, 2011
    Messages:
    194
    Likes Received:
    181
    Indeed my friend...........pretty cool
  8. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,478
    Likes Received:
    3,389
    Great detailing and a great chronicle. It will be very helpful. :)
  9. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    Last weekend I was getting ready to write a post about the landing bay recesses when I noticed that the parts are mislabeled. I first noticed that something was wrong when the upper hull part UH-1L...

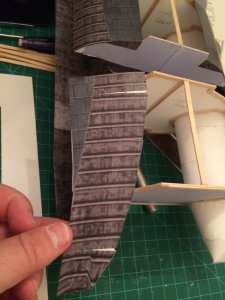

    ...didn't match the bulkheads CH-1 and CH-2 on the left side...

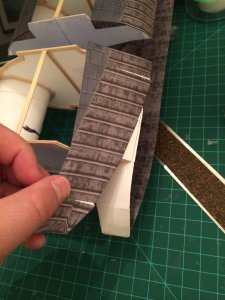

    ...but it did match the right side.

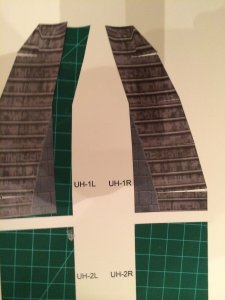

    So the UH parts were mislabeled; L is really R and R is really L. With this in mind I carefully detached the UH2 parts. This shows the incorrect installation on the left and the correct on the right.
    IMG_0441.jpg IMG_0445.JPG
    BTW, I love the way those parts lay. The part width and the space between CH-3 and CH-4 are exactly the same and the top and bottom fit exactly to the CHs. They just fit well.:happy:

    I thought that was the end of the speed bump, but I was wrong.:( So far, every part that is numbered "1" has been at or near the front of the sub assembly. Which is why what the next pic shows puzzled me.

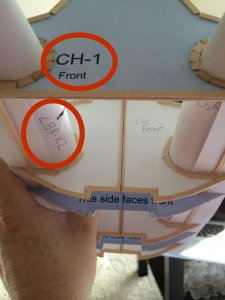

    Yup, that's LBR-R2 installed on the first former. The placement of the landing bay recesses is important because the fore and aft ends of the part have different shapes.
    The left end (LBR-L2) has a pointed end while the right (LBR-L1) has a more rounded end. So the LBRs are also mislabeled: "1" is really "2" and "2" is really "1".

    To recap:
    Incorrect.....Correct
    Part Number...Part Number
    LBR-L1........LBR-L2
    LBR-L2........LBR-L1
    LBR-R1........LBR-R2
    LBR-R2........LBR-R1
    UH1-L.........UH1-R
    UH1-R.........UH1-L
    UH2-L.........UH2-R
    UH2-R.........UH2-L
    UH3-L.........UH3-R
    UH3-R ....... UH3-L


    So this weekend I'm going to have fun cutting off the LBRs from the superstructure, recutting the parts from my backup copy, re-folding the parts and installing them. *sigh*

    I've let Steve know. Hopefully (I'm right and) this will be corrected in a future release. When that happens (the correction, not me being right) I'll edit this post.
    Last edited: Jun 22, 2014
    Revell-Fan and Cforrest900 like this.
  10. Revell-Fan

    Revell-Fan Co-Administrator Administrator Moderator

    Joined:
    Aug 1, 2009
    Messages:
    5,917
    Likes Received:
    3,555
    Thank you very much for pointing this out! This info is very useful for any builder.
  11. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,431
    Likes Received:
    2,326
    Thank you for the information. I am currently (even though, I have not touched it in awhile) a "BLOOD & CHROME" version, using the 1.5 ft. model. I will be keeping a close eye in this build.
    Thank you once again for sharing your finds with all of us!!!
  12. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,478
    Likes Received:
    3,389
    I changed the name of the thread. It sounded too negative for such an excellent thread! :)
  13. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    Thank you, but the title was a Starbuck quote.
  14. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33
    I got a lot done this weekend. To make a long story short, I securely glued in the pod arms and started working on the upper hull. When test fitting the upper hull pieces I noticed that the arms are too low.
    There's no way to move the arms up. I'm starting the entire mid-ship section over. I've learned a lot while working on this section so the entire model would improve, I think.

    Lessons Learned
    1. Don't need no stink'n tabs.

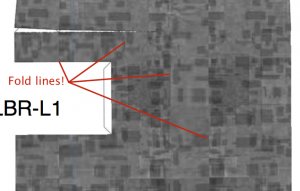

    2. Even though there are no lines on the parts, the fold line can be determined by overlapping patterns. Screen Shot 2014-06-22 at 2.23.45 PM.jpg
    3. Use a black marker on the edges. Don't, however, use that marker on the butt joint between two parts.
    4. Use the marker on the back of each part, near the edge.
    5. A depleted ball point pen is the only thing you should use for scoring fold lines.
    6. LBRC-1 & LBRC-2 being called the "floor" isn't even close to being accurate.
    7. A&W Root Beer and Jack Daniels isn't bad.
    bgt01, Rhaven Blaack and Revell-Fan like this.
  15. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33

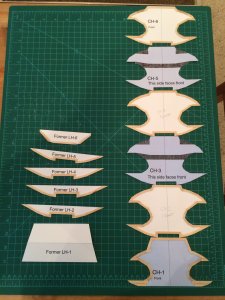

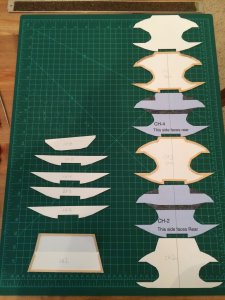

    I cut the time on reinforcing the formers in half.
    IMG_0481.jpg IMG_0482.jpg
    Revell-Fan, bgt01 and Rhaven Blaack like this.
  16. DJPinter

    DJPinter Trusted Confidant

    Joined:
    Mar 5, 2014
    Messages:
    62
    Likes Received:
    33

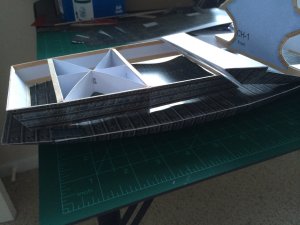

    The LH formers are installed in a new lower hull.

    I have no fracking clue if LH6 is installed correctly.
    IMG_0503.JPG IMG_0504.JPG

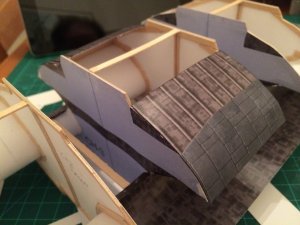

    Landing pod recesses cut and assembled. Location of the CH formers.
    IMG_0505.jpg IMG_0506.jpg

    Since this is the THIRD TIME I'M BUILDING THIS SECTION, I've found that the positioning of CH2, CH3, CH4 and CH5 is critical. If the space between CH2 and CHR3, for example, is greater or less than 2.9cm the position of every other part will be off. Yeah, I know. I'm picky.
