AC-130 Spectre

Discussion in 'Aircraft & Aviation' started by Airborne82, Jun 19, 2010.

  1. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    I believe its close to 1:60ish... I say that cause I don't really know... all I did was take the origial model and blow it up to 180%. The wingspan is roughly 23 inches, and the actual aircraft is 132 feet, so roughly 1:60. I saw a picture of that fly model on after a quick google search, that thing's a beast! Looks like fun though, for sure.

    I was looking online last night for pictures of the GAU-12 so I could start working on it, and I fell asleep at my computer. Didn't get very far. 'Bout to start on it again, we'll see how it goes tonight. I also discovered that our chow hall doesn't have coffee stirrers (they have the stupid flat plastic things). So much for that idea. Oh well, adapt and overcome. Time to do work!
    -Chris
  2. Retired_for_now

    Retired_for_now New Guy

    Joined:
    May 1, 2009
    Messages:
    384
    Likes Received:
    0
    Obscure Photos?

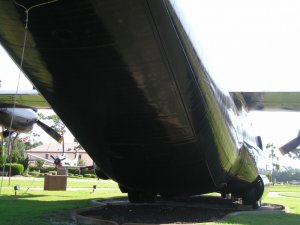

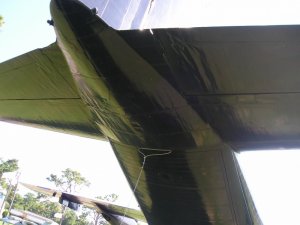

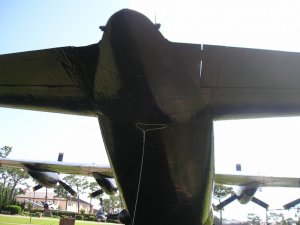

    AC-130A model. The H and U have the observation bubble in the door - lower section is the ramp, upper is the door. Rectangular skid plate on the door is just below the join.

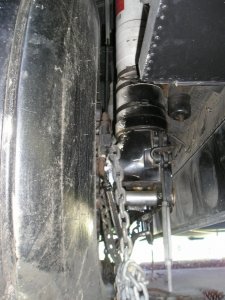

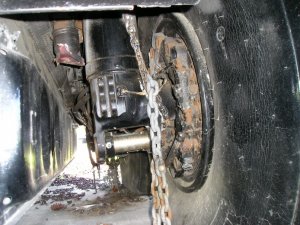

    Not much to see inside the wheel wells. Wheels are on a single vertical strut that comes straight down on a jack-screw. Inner doors drop to vertical when open and stay close to the wheels, outer door the same (it can be unpinned and opened wide on the ground for mx). I might still have an old -1 around with a diagram; I'll look around.


    Yogi
  3. knife

    knife Member

    Joined:
    Jun 23, 2007
    Messages:
    164
    Likes Received:
    0
    I picked up one of the observation domes from DRMO. It was made of 1/2" thick plexiglass and perfectly clear. My kid loved to sit in it and rock back and forth when he was 5 years old. I was going to make it into an aquarium coffee table, but when I was TDY the wife threw it away. I'll never find another one. Bad wife . . . bad bad wife . . .
  4. peter taft

    peter taft Senior Member

    Joined:
    Jan 15, 2010
    Messages:
    925
    Likes Received:
    0
    Good shape, Great props !

    The engine looks pretty damn good to me - looks like you've got it well in hand.. look forward to the next up-date :thumb:
  5. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    Hey, sorry I've been out of the loop for awhile. I had 3 college classes that needed to be finished and now I'm on vacation in Hawaii, but when I get back to Iraq, I'll get right back to this and start posting up some more stuff. Thanks a bunch for the pictures Yogi, I really appreciate it. I'll try and use it to make this beast better. Well, gotta shower now, its almost time for the luau!
    Peace
  6. rdajunior95

    rdajunior95 New Member

    Joined:
    Aug 24, 2008
    Messages:
    20
    Likes Received:
    0
    The models looks Good!
  7. Fonzerlator

    Fonzerlator New Member

    Joined:
    Jul 16, 2010
    Messages:
    11
    Likes Received:
    0
    how long is the actual model?
  8. RocketmanTan

    RocketmanTan Well-Known Member

    Joined:
    Mar 21, 2010
    Messages:
    1,159
    Likes Received:
    291
    For some reason, I've never seen any models available for download that are of the AC-130, despite its popularity. Thank you very much for bringing this to us! :thumb: Hope to see more of this in the future!

    --Bryan
  9. ustercluck

    ustercluck New Member

    Joined:
    Feb 5, 2008
    Messages:
    10
    Likes Received:
    0
    Nice, one of my favorite planes. I can't wait.
  10. eibwarrior

    eibwarrior Member

    Joined:
    Dec 17, 2005
    Messages:
    588
    Likes Received:
    0
    Great job so far on this Spooky!

    I look forward to when you can get back into her again. This is a subject that's needed some attention for a long time.
  11. TheSarge

    TheSarge New Member

    Joined:
    Jun 23, 2006
    Messages:
    15
    Likes Received:
    0
    Looking good!
  12. WharDemon

    WharDemon New Member

    Joined:
    Apr 29, 2010
    Messages:
    11
    Likes Received:
    0
    Looking forward to the next update on this build, looks like it'll be a fun kit. I think it may even garner the interest my modern warfare2 addicted little bro, since this beast plays a part in that game.
  13. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    Well everyone, I'm back in Iraq now, so I've got some time to work on this thing. This designing stuff is tough, especially without CAD software.. Trial and error my friends. I've made some progress though, but mostly on the repaint, adding lots of small details that you probably wont even be able to see when its built. I've been trying to get the GAU-12 and M-61's to look right, but the barrels are so small, it's rather challenging. Anyhow, I hope to get something else physically built so I'll have something to show ya'll. Something besides a cool looking engine :) Thanks for the interest guys, I'll try not to dissapoint!
    -Chris
  14. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    I did some more work on the forward nose area today and built a new test build of it, it looks pretty good, I'll to post a picture pretty soon. Designing new landing gear doors and working on the windscreen forward of the twin M61 Vulcan Cannons. It's lookin pretty good, I'm excited :) Those guns are still kickin my butt though... I wish I had a good CAD program, that'd make life so much easier.
  15. Commander Adama

    Commander Adama Member

    Joined:
    Feb 16, 2008
    Messages:
    162
    Likes Received:
    0
    Airborne Eighty Deuce, I'm here too. PM me let know where you at.

    Adama
  16. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    Adama - I tried to PM you but it wouldnt let me.

    So I did some scratch building today and finally put together an M61 Vulcan. It looks alright, but not perfect yet. I also did a little for some of the other details, but tragedy has struck. The computer hooked to the color printer at work (the ONLY color printer) died... so I cant print off the stuff I'm designing to see if it works. Things are going to be slow going until they get it fixed. I'm still excited about this project though and I hope ya'll are too. I'll be glad when its over and you guys can build something new and fun (and free!!!)
  17. Airborne82

    Airborne82 Member

    Joined:
    Jun 13, 2010
    Messages:
    32
    Likes Received:
    0
    Finally took some pictures of the mock-up I'm working with. This will give you an idea of the size of it, and some of the detail. I used some .032" safety wire for the M61 Vulcan cannon barrels, which I'm not entirely happy with.. its just hard to roll paper that small. I'll figure something out. I designed a new nose landing gear door (not pictured) and a slew of new antenna's to install. I'm still workin on it :) Hope ya'll like what you see thus far.
    [​IMG]http://i36.photobucket.com/albums/e11/capguy84/a2.jpg[​IMG][​IMG]
