A nice green crocodile in Switzerland

Discussion in 'The Real Thing- International' started by RailRon, Sep 27, 2003.

  1. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

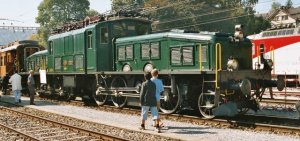

    A the same Railfest in Degersheim (Switzerland)where I photographed the big steamers there was also a Swiss crocodile loco auf the SBB (Swiss Federal railways).

    Type designation is Ce 6/8 III --> meaning: C = top speed 40 mph/(65 km/h), e = electric, 6/8 = six of eight axles powered, III = the 3rd series built. (Type I was a prototype, type II had a different rod mechanism).

    One of the most famous locos of Switzerland, I guess. Enjoy!

    Attached Files:

  2. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

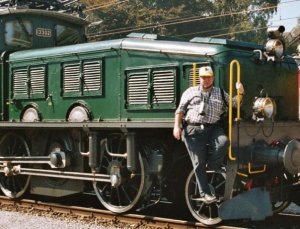

    Just to give an idea about the size of the loco - here's a comparison with a rather short example of the human species. :D :D :D

    (Hehe, just a lame excuse to post ones own pic...)

    Attached Files:

  3. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0

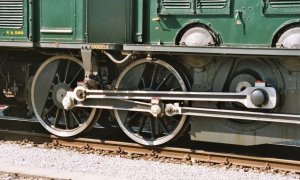

    Here is a close up look of the rodding.

    On the right is a gear wheel, enclosed in an oil bath. From here the power is transmitted to the wheels. This 'blind axle' with the big gear wheel is powered from two electric motors above. In the long noses there are also the compressors and other auxiliary stuff.

    In fact both crocodile noses are two articulated trucks. The cab with the pantographs and transformers is suspended between these two wheeled trucks. The gap between cab and nose is clearly visible.

    Attached Files:

  4. belg

    belg Member

    Joined:
    Apr 29, 2001
    Messages:
    900
    Likes Received:
    0
    sale

    There are two of these for sale on ebay right now from a swiss/american collection.N scale
  5. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Ah, Ron, I built one of these from the Kitmaster kit over 40 years ago. I never managed to hook up with a 2 rail HO version...
  6. Ricardo Correia

    Ricardo Correia Member

    Joined:
    Oct 14, 2003
    Messages:
    123
    Likes Received:
    0
    I won't say anything more: I love this locomotive!

    That's all!
