A CP station

Discussion in 'Robin At His Best' started by Matthyro, Nov 2, 2003.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    I decided to make a CP designed station for the corner Ntrak module I am making to take to Val's BBQ next summer.
    The station is based on the old CP station located in Saskatoon Saskatchewan. Now that's a mouth full for anyone.

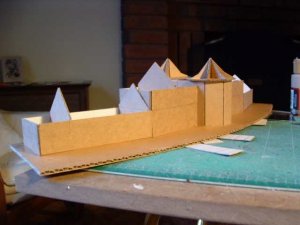

    I start by making the form out of corrugated cardboard.

    Attached Files:

    • cp1.jpg
      File size:
      29.4 KB
      Views:
      609
  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,444
    Likes Received:
    0
    This is gonna be good!!!!
    I can see the Station now:D :D :D
  3. Lighthorseman

    Lighthorseman Active Member

    Joined:
    Jul 24, 2002
    Messages:
    1,257
    Likes Received:
    0
    Can't WAIT For This One!

    Anticipating!! :)
  4. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,715
    Likes Received:
    0
    We are waiting Robin.
  5. CN1

    CN1 Active Member

    Joined:
    May 7, 2003
    Messages:
    1,067
    Likes Received:
    0
    How do you do it? Man, I try to do some basic structure out of cardboard. How do you spell DISASTER? Yep! Didn't work at all

    But you.....holy! You're good!
  6. txcavgr

    txcavgr Member

    Joined:
    Jan 21, 2003
    Messages:
    67
    Likes Received:
    0
    Hey, Matthyro
    thanks for the idea! I am about to start scratchbuilding (styrene) the Gorham, New Hampshire station, ex-Grand Trunk, for my SLR layout. I have been trying to figure out how to make the two-pitch round roof for the front of the station where it is curved. I am going to try your method, with a bunch of shaped formers, then cover them.

    Thanks!
  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,024
    Likes Received:
    0
    A station built into a curve on a corner module...You're a creative genius, Robin!:cool:
  8. Cinnibar

    Cinnibar Member

    Joined:
    Nov 2, 2003
    Messages:
    206
    Likes Received:
    0
    Hi Charlie!

    “Charlie”,

    I finally got back to the other place and took your advice.
  9. Arlaghan

    Arlaghan Member

    Joined:
    Sep 9, 2003
    Messages:
    667
    Likes Received:
    0
    Already off to a good start! Can't wait to see this one unfold! :D
  10. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,617
    Likes Received:
    0
    Fine to have you back, Robin, with yet another great project. The outline of that station looks very promising!

    And as it seems, you are already in 'Full forward' again! :) :) :)

    Ron
  11. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,024
    Likes Received:
    0
    Re: Hi Charlie!

    Glad you found us, Cinibar!
    I thought you'd like it here...this is my favorite "hangout"!
    This thread is a good example of what I was telling you about!
    Pull up a chair, & join i8n!
    Welcome aboard!
  12. txcavgr

    txcavgr Member

    Joined:
    Jan 21, 2003
    Messages:
    67
    Likes Received:
    0
    This is the station I started today.....
    [​IMG]
  13. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    I was trying to come up with a better way to make windows. Not sure if I saw this idea somewhere but here goes.

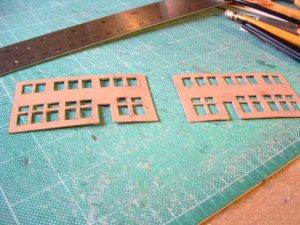

    I start by cutting out the windows in a section of cerealboard.

    Attached Files:

    • cp2.jpg
      File size:
      54.2 KB
      Views:
      495
  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    Next I coat it with acrylic craft paint. When paint is dry I sand it lightly to take of rough spots.

    Attached Files:

    • cp3.jpg
      File size:
      56.1 KB
      Views:
      477
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    Next I cut strips of paper. some 1/8th of an inch and some 1/16th of an inch

    Attached Files:

    • cp4.jpg
      File size:
      59.4 KB
      Views:
      463
  16. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0

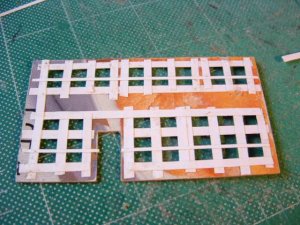

    I glue the paper strips to the back of the windows allowing about 1/32 of an inch to show around the edge of the window and 1/16th cross bars .

    Attached Files:

    • cp5.jpg
      File size:
      52.7 KB
      Views:
      357
  17. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0

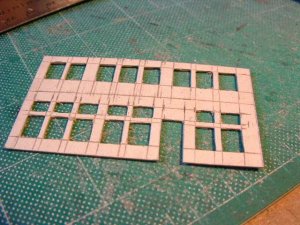

    The windows with white framing is the end result, ready for glass and or blinds or curtains.

    I like this method because the window framing is neat with straight edges.

    Attached Files:

    • cp6.jpg
      File size:
      46.7 KB
      Views:
      357
  18. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    That's a neat looking station you are building txcavgr
    .Will look forward to seeing your progress.
  19. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    Progress

    So many other things to do these days like raking leaves, raking leaves,raking leaves. Do they ever stop falling? Problems when you are surrounded by these magnificent maple trees.
    This station has lots of windows.

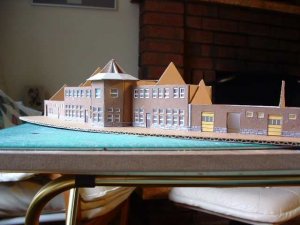

    Here is a view from the front.

    Attached Files:

    • cp7.jpg
      File size:
      37.8 KB
      Views:
      321
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,669
    Likes Received:
    0
    Rear view. Next I will be into roofing mode.

    Attached Files:

    • cp8.jpg
      File size:
      36.6 KB
      Views:
      313
