88's Scratchbuild Challenge

Discussion in 'Competitions & Challenges' started by eightyeightfan1, Jul 1, 2006.

  1. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Looking good there my friend. :thumb: :thumb: Nice to have a prototype.

    BTW, we should mention that you stickied the thread "Have you seen any good structures.." in the Photo forum to give us all something to think about modeling. Thanks...:wave:
  2. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    7,260
    Likes Received:
    0
    Looks Great so far :) :)
  3. jim currie

    jim currie Active Member

    Joined:
    Jun 29, 2003
    Messages:
    1,443
    Likes Received:
    0
    looking good 88 i haven't got my scratch building supplys ordered yet:( and your just sailing along :)
  4. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
  5. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Here's what I did today...

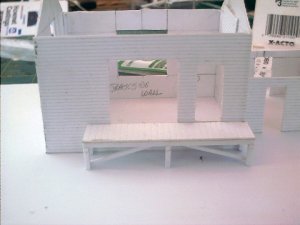

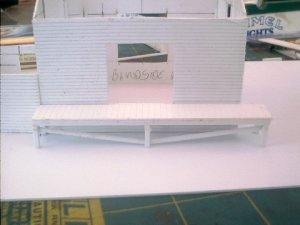

    I built both the trackside dock, as well as the "Blindside" dock..The trackside dock I tried to make look like the one in the pic, except I added a cross support. With the blindside dock, since I'm only guessing, I made it shorter.

    Attached Files:

  6. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

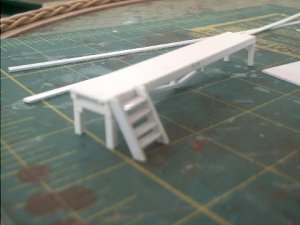

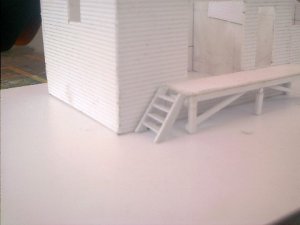

    I then added stairs to both docks. Trackside dock I made so they ran along the wall. The blindside, I built so it ran the same direction as the dock. Unfortunatly, the batteries went dead in the camera, so I couldn't get a shot. I'll get some more tomorrow.
    The steps were made using Evergreen's Stair Kit #201.
    Next up: painting the docks, preping the site for placement and scenery.

    Attached Files:

  7. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

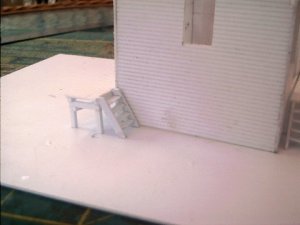

    Fresh batteries....As Promised
    Heres pics of the two docks in postition.

    Attached Files:

  8. cnw1961

    cnw1961 Member

    Joined:
    Jan 8, 2006
    Messages:
    936
    Likes Received:
    0
    88, all I can say: :thumb: :thumb: :thumb: :thumb: :thumb: :thumb: :thumb: .
  9. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Next thing I did was work on the firebucket shelf.
    First thing I did was to tape two pieces of Evergreen strip side by side. With my Dremel(Which I got back in May, for a B-day present) I started to shape the braces for the shelf. After satisfied with the shape........And looking at the pic of Ore Hill, I determind that the strip was too wide.(Scratchbuilding...stuff like that happens alot)
    Opting for narrower strip, I started over.

    Attached Files:

  10. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

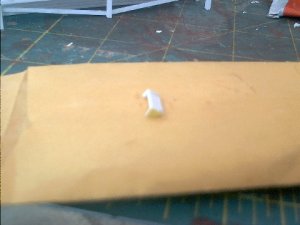

    After getting the shape right on the braces, I glued them together with a piece of Evergreen strip in between. Heres a pic of the completed shelf(Sorry about the fuzziness, forgot to put the camera on macro)

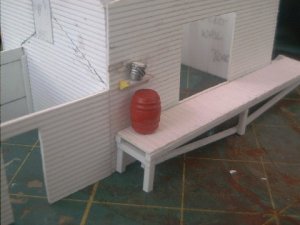

    After the gue had set, I gued the shelf on to trackside of the freight side. Here's a pic with a barrel and bucket.The barrel is from Campbell(and was already painted red!), the bucket I pulled from a Prieser "Farmers Set" .

    Attached Files:

  11. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Thanks cnw...I was still tyoing and uploading pics when you posted.
    The next step was I assembled the Tichy Train Groups windows and doors and glued them into their proper openings.
    Tip: Good idea to mark the windows and door with numbers that correspond with the window and door openings you want them in.(Just made that one up....Beleive me, next time that what I'm going to do.

    Attached Files:

  12. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

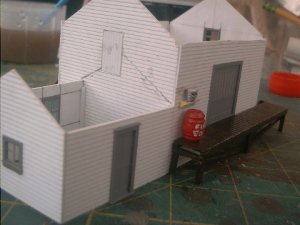

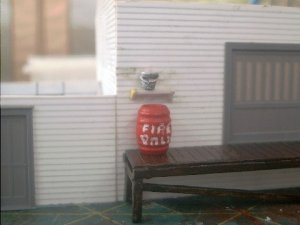

    I then shot both docks with a coat of primer. Afetr they had dried, I hand painted the docks burnt umber. I didn't try to get a nice even covering, but more of a stain. I also tried to paint where I thought parts will be or could be seen. While they were drying, I hand painted the words "Fire Only" on the barrel. I messed up the "O" in only, but came to the conclusion the the SA wasn't a sign painter.
    I was going to do the trim around the edges of the depot, but didn't have the right palstic strip. Guess a stop at the LHS tomorrow after work is in order.

    Attached Files:

  13. TruckLover

    TruckLover Mack CH613 & 53' Trailer

    Joined:
    Apr 15, 2006
    Messages:
    4,352
    Likes Received:
    0
    That is really turning out to be some building there:thumb: :thumb:
  14. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Fantastic! :thumb: Is there a layout for this to placed on?
  15. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Thanks guys..Yes..There is a layout. But I haven't decided if I'm going to use the depot yet or not.
  16. MilesWestern

    MilesWestern Active Member

    Joined:
    Sep 21, 2005
    Messages:
    1,905
    Likes Received:
    0
    Ah, is there a link on the gauge to it? I wanna see it! :)
  17. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Bits and pieces, Its not finished yet, but if you do a search under my moniker, you'll see parts of it.
  18. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    Ahhhhhhhhhhhh!!!!!!!!!!!!!!!!
    Went to the LHS today to pick up some more plastic strip. Told the owner that I was building Ore Hill depot. He told me he had some info on Ore Hill. Went in the back and came out with some papers stapled together. There were copies from a chapter of a book. The last pages were on Ore Hil. On them was the same pic I was using for reference. To the left of the picture........ACTUAL MEASUREMENTS FROM THE ORIGINAL DEPOT........I had to guestimate the dimensions. I was only a couple of feet off.There were no pics of the blindside though........
  19. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0
    ....Anyway...........

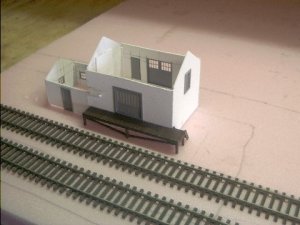

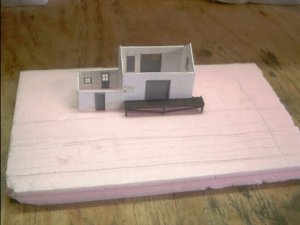

    Started working on the base today. Started with 1" pink insulation foam. Took measurements for two tracks(which, looking at the new reference material, actually exsisted) and the depot. After cutting the foam, I rechecked everything.

    Attached Files:

  20. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,837
    Likes Received:
    0

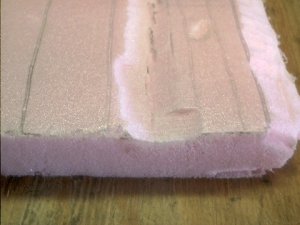

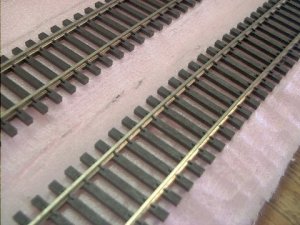

    After rechecking, and remarking the foam, using my birthday present(Dremel) I started to shape the roadbed for the track. Then I recheked the alignment.

    Attached Files:
