65ft. single stall loco shed

Discussion in 'Robin At His Best' started by Matthyro, Dec 17, 2004.

  1. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0

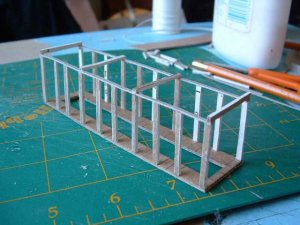

    This loco shed will go with the turntabe I am building for my Nn3 logging section.
    So far I have used some 1/16th inch corrugated cardboard, cerealboard and a sheet of copy paper. It is based on a drawing in one of my railroad books.

    Attached Files:

    • eh.jpg
      File size:
      40.6 KB
      Views:
      919
  2. Will_annand

    Will_annand Active Member

    Joined:
    Jan 12, 2004
    Messages:
    1,488
    Likes Received:
    0
    Here he goes again :D the master artist is at work on a new project.
    I cannot wait to see your latest object of art take shape. :thumb:
  3. Fred_M

    Fred_M Guest

    Bout time Yoda gets back to work. Show us how to do it. Fred
  4. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Did a bit more tonight. Roof and rafters. All made out of cerealboard.

    Attached Files:

    • raf.jpg
      File size:
      42.9 KB
      Views:
      831
  5. philip

    philip Guest

    :thumb:

    quick to Robin!
  6. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,791
    Likes Received:
    0
    Great Stuff!!!! :thumb: :thumb:

    I wonder what it would look like in 1:20.3? :eek: :eek: :eek:

    (Mikey sees a "few" copy/pastes in the future) :D :D :D :D
  7. eightyeightfan1

    eightyeightfan1 Now I'm AMP'd

    Joined:
    Jun 18, 2002
    Messages:
    2,799
    Likes Received:
    0
    WHAT!!!! :eek: No Cardboard! :(
    Looks good! :thumb:
  8. DeaconF

    DeaconF Member

    Joined:
    May 3, 2003
    Messages:
    49
    Likes Received:
    0
    What do you use to cut the 2 bys out of the cereal boxs? I can't see how you keep those thin pieces from curving. thanks Frank
  9. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,791
    Likes Received:
    0
    Ok - First question of many :) :)

    Is that hole in the floor for track - or will that be the top of the ash/oil pit???

    I have mine designed....2 Ft long X 7" wide... Pics coming soon :) :)

    The Climax will fit perfectly!!!!
  10. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0

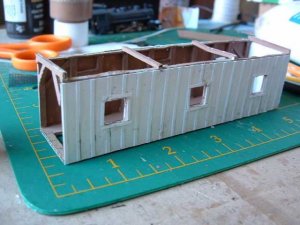

    Frank, the way to keep thin strips of cardboard straight is to cut them with three or four light strokes with the knife.
    Mikey the the hole is for track and will cut the end sections out once the building is complete. I just left them in place to hold everything together through the construction.
    I made the walls out of 110 cardstock.

    Attached Files:

    • eh1.jpg
      File size:
      37.5 KB
      Views:
      770
  11. MasonJar

    MasonJar It's not rocket surgery

    Joined:
    Oct 31, 2002
    Messages:
    5,441
    Likes Received:
    0

    Mikey - I would guess it is for track and possibly for an inspection pit. But you'd better dump the firebox OUTdoors... ;)

    Andrew
  12. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,791
    Likes Received:
    0
    LOL -- I thought of that after I started mine :) :) :)
  13. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,791
    Likes Received:
    0

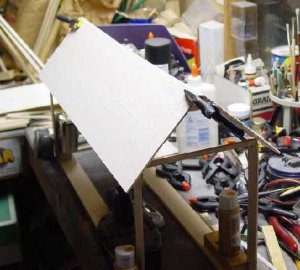

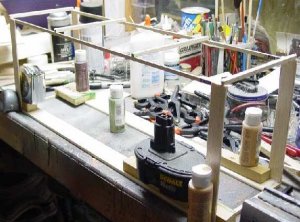

    Here's the start of one In G!! It's 24" X 7" X 12" tall to the peak of the roof :) :) I'm building it with balsa wood :) :)


    Robin - you're gonna have to work slower for this dummy to keep up with you!! :D :D :D :D

    Attached Files:

  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Nice one Mikey. I would love to be working in G scale if I only had the room.

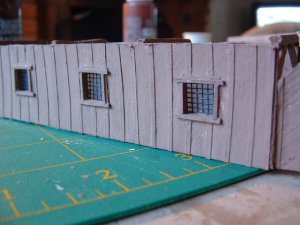

    I have added windows made from window screen mesh and plastic coffe can tops.

    Attached Files:

    • eh2.jpg
      File size:
      55.3 KB
      Views:
      800
  15. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0

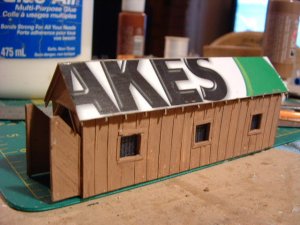

    The roof added ready for shingles.

    Attached Files:

    • eh3.jpg
      File size:
      58.8 KB
      Views:
      736
  16. SAL Comet

    SAL Comet Member

    Joined:
    May 13, 2004
    Messages:
    420
    Likes Received:
    0
    Robin, I can see the printed side of the cereal board on some of the rafters, is the printed side on the top of the roof? If so, what do you paint over it with? Or will you use some thing to simulate roofing material? Looks good ,as always I don't see how you N/Z guys can work that small.
  17. Fred_M

    Fred_M Guest

    LOL Robin, your roof reads Green Acres, sort of :D .


    The doors loook nice too... The diagonal scribing is perfect.
  18. SAL Comet

    SAL Comet Member

    Joined:
    May 13, 2004
    Messages:
    420
    Likes Received:
    0
    Damn Robin, You answered my question before I could get it typed! :eek: :eek:
  19. N Gauger

    N Gauger 1:20.3 Train Addict

    Joined:
    Dec 20, 2000
    Messages:
    6,791
    Likes Received:
    0
    That looks Great!! :) :) You're almost done & I'm still waiting for the glue to dry!! :D
  20. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Here I am trying to make shingles out of card stock. Had trouble keeping the lines straight as I was watching football while doing this.
