10 yrs. later; finally modeled it!

Discussion in 'Scratchin' & Bashin'' started by Ralph, Aug 10, 2003.

  1. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0

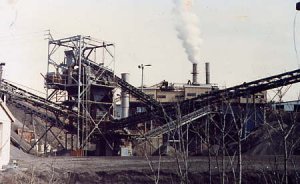

    I used to go past this aggregate plant near Mt. Marion, NY every day and always wanted to include a model of it on a train layout. I took this picture ten years ago as a reference during a visit to my home town but then put it aside.

    Attached Files:

    • ag1.jpg
      File size:
      23.1 KB
      Views:
      355
    • ag1.jpg
      File size:
      23.1 KB
      Views:
      357
  2. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0

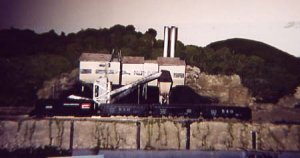

    Here's my version of iit....

    Attached Files:

  3. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0

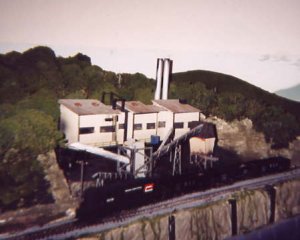

    another view:

    Attached Files:

  4. Clerk

    Clerk Active Member

    Joined:
    Nov 6, 2002
    Messages:
    1,744
    Likes Received:
    0
    Nice job Ralph
  5. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Well done Ralph, ya did it:D :D :D :D :D :D :D :D :D :p
  6. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,500
    Likes Received:
    0
    Looks like a winner to me Ralph, nice work!
  7. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,767
    Likes Received:
    0
    Good modelling Ralph. I am sure this will bring traffick to this section of your layout.
    Nicely done.
  8. rsn48

    rsn48 Member

    Joined:
    Feb 28, 2003
    Messages:
    201
    Likes Received:
    0
    Good work. After having done some scratch building, I know how satisfying it is to have your work done, have done it well, and then own the bragging rights.
  9. TomPM

    TomPM Another Fried Egg Fan

    Joined:
    Oct 15, 2002
    Messages:
    3,411
    Likes Received:
    0
    Nice modeling. Looks good.
  10. UP_STEVE

    UP_STEVE Member

    Joined:
    Jun 21, 2003
    Messages:
    45
    Likes Received:
    0
    :) that looks great ralph
  11. ezdays

    ezdays Out AZ way

    Joined:
    Feb 3, 2003
    Messages:
    6,590
    Likes Received:
    0
    Right up there with the best of them Ralph. I am always inspired when I see work like yours.

    Don
  12. jmarksbery

    jmarksbery Active Member

    Joined:
    Sep 25, 2002
    Messages:
    1,039
    Likes Received:
    0
    Well done myfriend very well done! Keepem comin! :eek: ;) :eek:
  13. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Thanks everybody! You're all so encouraging it makes it fun to try new things and show them off. I'm happy with the way this came out. I took a risk and cut into an existing scenicked hillside to add the industry. I think the conveyors make it look busy. Here's one last pic from a little further away.
    Ralph

    Attached Files:

    • ag1.jpg
      File size:
      23.1 KB
      Views:
      202
    • ag1.jpg
      File size:
      23.1 KB
      Views:
      203
  14. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0

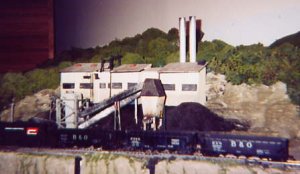

    Oops! Yeah I really did a good job modeling that, huh? Can't tell it from the prototype! :D Here's the pic I meant to post!

    Attached Files:

  15. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,154
    Likes Received:
    0
    Fantastic modeling there, Ralph!:cool: :cool: :cool:
    Isit a kitbash? Scratchbuilt? Alittle of both?:)
    (inquiring minds want to know!:D )
  16. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Thanks Charlie! Its mostly scratchbuilt with scribed styrene on the main structure. First time I've used it. I need more patience and practice cutting it. The hopper structure on the left side that the converyors sprout from is framed by sections of an Atlas bridge. I used Walther's conveyors. The loader toward the right side of the pics is made of good ol' carboard.
    Ralph
  17. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Ralph, this model really looks impressive. Also the settiing into the landscape is very well done. It surely paid out to dig into these hardshell hills! :D

    But I have a question, too: What does an aggregate plant do? Never saw something like that here in my country... :(

    Ron
  18. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    AGGREGATE,, The collecting together ,or ,, a mass formed by the union of individual particles.

    Small rock, stones used in the mixing of cement sand and "aggregate" ( small rock) to form a solid base or wall.:eek:

    I think;) is that it Ralph??????
  19. Ralph

    Ralph Remember...it's for fun!

    Joined:
    Jun 18, 2002
    Messages:
    5,342
    Likes Received:
    0
    Thanks Chris, that did nicely! :)
    Ron, I need to research this a little more but the industry pictured appeared to heat up rock in long cylindrical kilns behind the main structure and then drop them red hot into piles below. It looked neat at night! The black rocks were then loaded into open hoppers and I believe were shippped north to a couple of large cement plants.
    Ralph
  20. RailRon

    RailRon Active Member

    Joined:
    Nov 23, 2002
    Messages:
    1,665
    Likes Received:
    0
    Ralph and Chris, thanks for your informations.

    Maybe that I have some difficulties with the translation of the proper expressions, but I think now can figure out what this plant does.

    I suppose that this is a sort of a rotating oven in which the natural raw materials for cement (limestone and clay with aluminum oxide) are baked to 'clinker'. To get the cement powder we all know, this clinker is ground in huge ball mills.

    Probably this aggregate plant does the baking of the clinker, which emerges as a dark grey mass from the kiln. (Looking at the dark heaps in your pics, Ralph, I thought the plant had something to do with coal industry! :D)
    As you said, the clinker has to be shipped to the cement plant where it is ground, mixed with some more chemicals and filled into bags...

    The setting of your model now makes even more sense - it suggests that the limestone quarry is just around the bend from here. A great source for traffic on your layout!

    Ron
