1 x 3 ft town

Discussion in 'N / Z Scale Model Trains' started by Bill Pontin, May 30, 2002.

  1. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

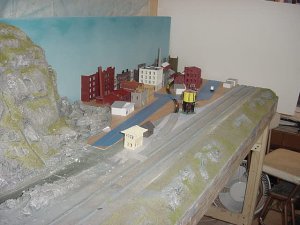

    Still working on my "N" track modules, working on my town of "Grizzly Summit". Setting an entire town up in such a limited space has been a real challange, I drew on a lot of ideas put out in this forum, especially some of yours Charlie. Have built all the structures up to a point to get their footprint and every night for several weeks I would rearrange the whole town, think I got it now. The town is laid out on a piece of 1/8" ply which I plan on cutting up for each building and it's surrounding lot. This jig-saw puzzle like idea will allow me to work at my bench on each stucture and it's landscaping. I'm pretty sure I can hide all the seams with sidewalk overlaps on the road, hedge rows and what not. Working at a bench will allow for a lot more detailing without having to bend over the layout. Each structure section will get glued in place as I complete them. The blue masking tape is the road outline, that and the spur track bed will be one continuous and interesting looking piece.

    Attached Files:

  2. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

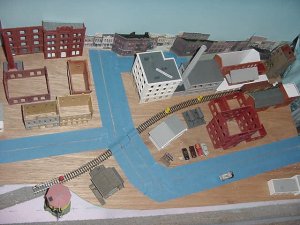

    Here is an overhead shot of the town. It should be pretty clear as to where I have to cut out and section the plywood for each structure.

    Attached Files:

  3. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

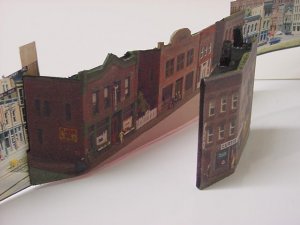

    Using my digital camera I was able to shot some structures I made on my home layout. I scaled, printed and attached them to foam. The foam I cut wedge shaped to provide a pleasing prespective.

    Attached Files:

  4. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

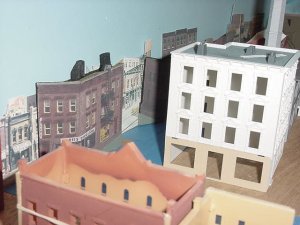

    whoops, wrong picture, that shows them in place. This I hope is the one I wanted to show you.

    Attached Files:

  5. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

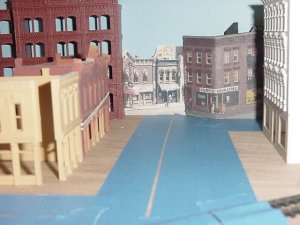

    Hey we even got a main street. The structures in the background are from the DPM website. Cheated by copying and scaling them.
    (Shame on me :rolleyes: )

    Attached Files:

  6. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0
    Future site of Don Trustum's used car lot.:D

    Attached Files:

  7. Drew1125

    Drew1125 Active Member

    Joined:
    Jan 28, 2001
    Messages:
    3,021
    Likes Received:
    0
    Biull,
    You've done a great job of creating that illusion of depth, where there is actuall very little...
    I really like the way the RR, & the streets criss-cross through the town.
    Would love to see more!
  8. Catt

    Catt Guest

    This shold be good for more than a few ideas.:)
  9. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Looks like the fun stage Bill setting up to get what feels right.
    The street level photo makes it all worth while. Great perspective.
  10. Tyson Rayles

    Tyson Rayles Active Member

    Joined:
    Sep 26, 2001
    Messages:
    4,343
    Likes Received:
    0
    Well I'm impressed! Can't wait to see more as the work progress's. :cool:
  11. roryglasgow

    roryglasgow Active Member

    Joined:
    Jun 4, 2001
    Messages:
    1,237
    Likes Received:
    0
    That looks great, Bill! And that's a very clever way to arrange the "flats," too. Thanks for the inspiration!
  12. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

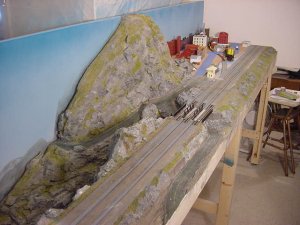

    Thanks fellows. Just when I think I got things nailed down, I see things and make a change here and there. I have a feeling that this setup can be an advantage and disadvantage. Have to reach a point and say "that's it, go with it and get started!" So much to do before September. Here is a shot of both modules together.

    Attached Files:

  13. Bill Pontin

    Bill Pontin Member

    Joined:
    Oct 15, 2001
    Messages:
    709
    Likes Received:
    0

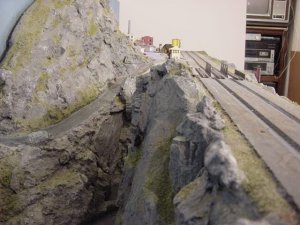

    Haven't even laid the track yet

    Attached Files:

  14. Matthyro

    Matthyro Will always be re-membered

    Joined:
    Dec 28, 2000
    Messages:
    4,666
    Likes Received:
    0
    Great realistic rock work Bill . Awesome scenery for passengers to see.
  15. shamus

    shamus Registered Member

    Joined:
    Dec 17, 2000
    Messages:
    3,521
    Likes Received:
    0
    Hi Bill,

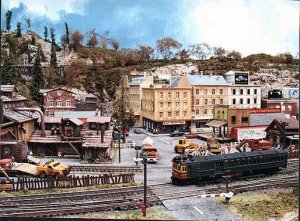

    Terrific photo's and great idea for low relief structures, I was into N-scale some years ago, and did a similar kind of thing, but used real buildings cut up to represent structures in the town.

    [​IMG]

    Attached Files:

  16. K.V.Div

    K.V.Div Member

    Joined:
    May 11, 2001
    Messages:
    636
    Likes Received:
    0
    That's some first class rockwork Bill, Great Job:cool:.
    Looks like you are doing it the way the real guys do it, Scenery first, Track second :D :D.
    Keep us posted.

    Terry
