1:24th "Boot Hill Express" by Monogram

Discussion in 'Plastic' started by micahrogers, Sep 21, 2014.

  1. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386
    'And for my next truck'....
    The Old (1967) Monogram Custom Car Series "Boot Hill Express" in 1:24th scale.

    This is the 2012 repop of the old 1967 mold and as such it shows it's age with tons of flash and sink holes, and I've found a couple pieces that are "short shot", meaning that the mold didn't fill properly.
    I'll try and make it as best as possible.

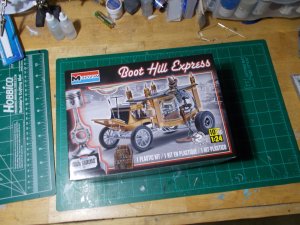

    what's in the box

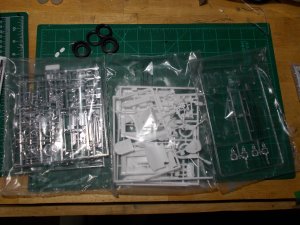

    Three bags of parts, BootHill_02.JPG

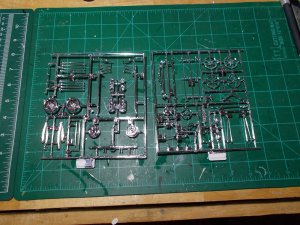

    Two sprues of chromed parts BootHill_2.JPG

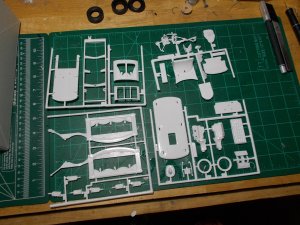

    four sprues of white plastic, BootHill_1.JPG

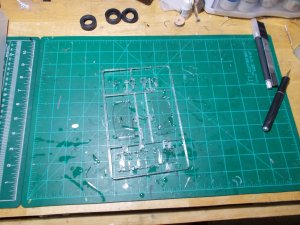

    one sprue of clear parts, and 4 vinyl tires un bagged BootHill_3.JPG

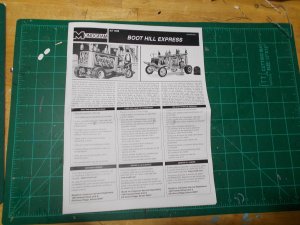

    And the instruction booklet. BootHill_03.JPG
    More updates to come as construction and painting begin.
    Castle D Modelworks likes this.
  2. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386

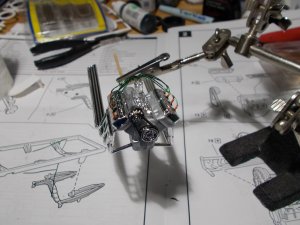

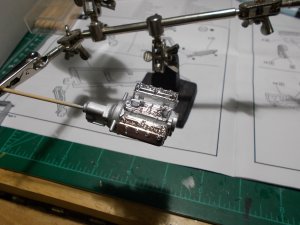

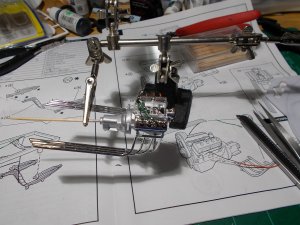

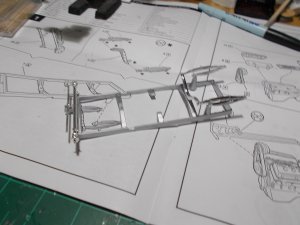

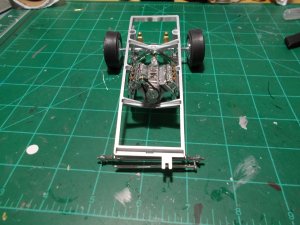

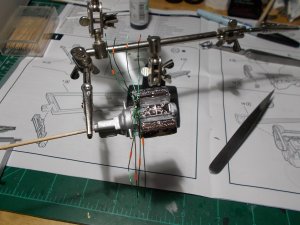

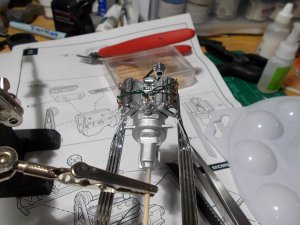

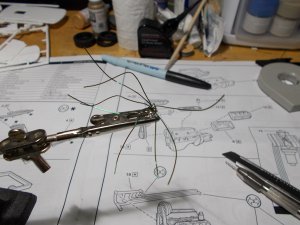

    The first pic is the base chassis assembled, the front steering bar was short shot and missing one end, the rear side springs were also short shot so the whole assembly is just put into location and CA glued together. BootHill_4.JPG The engine block was okay BootHill_5.JPG and I used my newly learned skills to wire the distributor. BootHill_6.JPG BootHill_7.JPG and here the plug wires are in place and the exhaust tubes are attached, the right hand tube piece was also short shot, but I was able to hide that :) BootHill_8.JPG BootHill_9.JPG BootHill_10.JPG
    More pics to come...
  3. silveroxide

    silveroxide Well-Known Member

    Joined:
    Aug 23, 2007
    Messages:
    2,153
    Likes Received:
    489
    reminiscence of the old days. I remember building that one a long time ago. Some one madeit and enhanced the engine compartment wire wiring and hosed using wire from phone lines. Looking on with interest on this old classic.
  4. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386
    Slow Day at work so I'm home at 11 AM EDT.

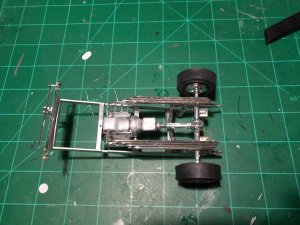

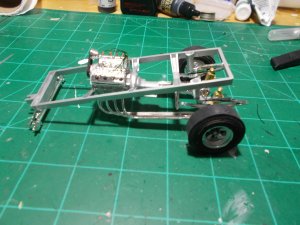

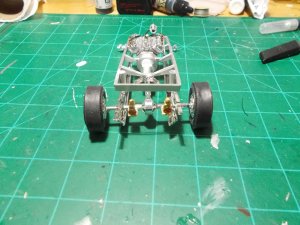

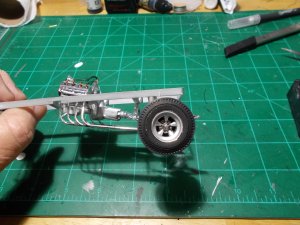

    I got the engine and rear suspension mounted to the chassis. I forgot to take a pic of the rear suspension/axle unit before I installed it to the chassis.
    BootHill_11.JPG BootHill_12.JPG BootHill_13.JPG BootHill_14.JPG

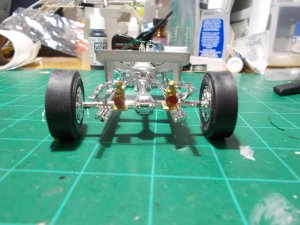

    in the next two pics are close ups of the "Tail Lights" and rear wheels.
    BootHill_15.JPG BootHill_16.JPG

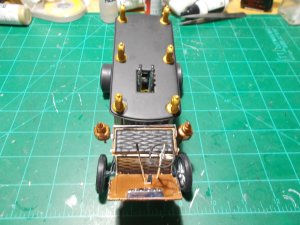

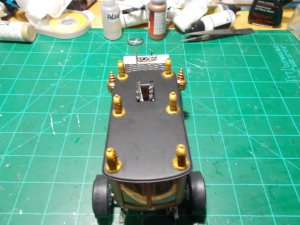

    and the chassis from above

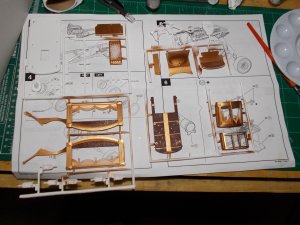

    Bobbi wants her Boot Hill to be darker than the kit calls for, so the main body color is AV Vallejo Game Color Brassy Brass instead of Bright Gold. The wood panels are base coated with Mahogany, and shadowed with a mix of Black Shade and thinned Mahogany, they will be finished with a dry brush of Flat Earth to finish the wood effect.
    More to come...
    And Thanks Silver... I slapped this one together back when I was a kid, Redoing it now with all my skill to make Bobbi, my wife, happy :)
  5. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386
    It goes together fast once all the painting is done

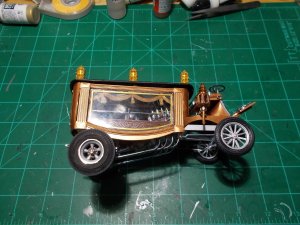

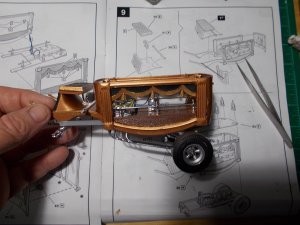

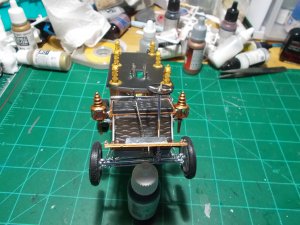

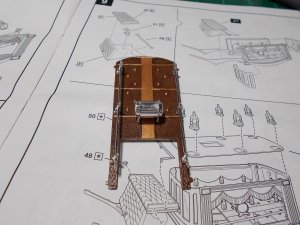

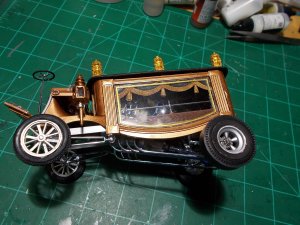

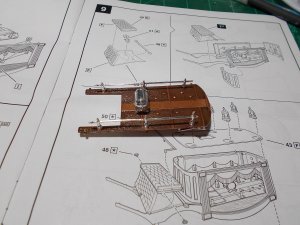

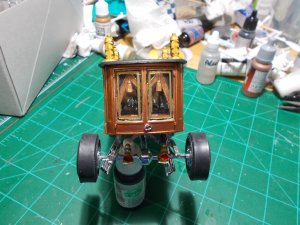

    The interior floor with the fuel cell installed BootHill_19.JPG BootHill_20.JPG and with the walls added, I made my plug wires yellow and added a blue fuel line. BootHill_23.JPG BootHill_25.JPG and the assembled car, BootHill_26.JPG BootHill_27.JPG BootHill_28.JPG BootHill_29.JPG BootHill_30.JPG BootHill_31.JPG
    Next is the skeleton to stand beside it....
    more to come.
    Rhaven Blaack and JimZ like this.
  6. JimZ

    JimZ New Member

    Joined:
    Jul 15, 2012
    Messages:
    71
    Likes Received:
    92
    Sweet build.
  7. Rhaven Blaack

    Rhaven Blaack ADMINISTRATOR Administrator Moderator

    Joined:
    Jun 12, 2009
    Messages:
    7,519
    Likes Received:
    2,459
    VERY NICE!!!
  8. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,686
    Likes Received:
    3,526
    This would be worth backward engineering into a paper model. UHU has already provided enough skeletons!! :)
  9. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,686
    Likes Received:
    3,526
    That really did come out nice. Some background size pictures would be nice. You could upload big ones as .zip files. :)
  10. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386
    These pics are the ones my camera makes set at 8 Mp,
    work on the skeleton,

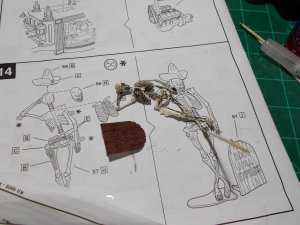

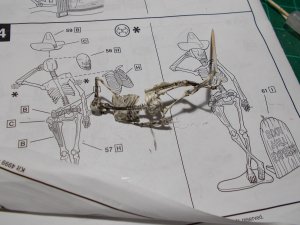

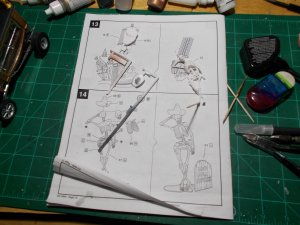

    all pieces assembled and primed BootHill_38.JPG
    then the skeleton itself washed with a black wash to add depth BootHill_39.JPG BootHill_40.JPG

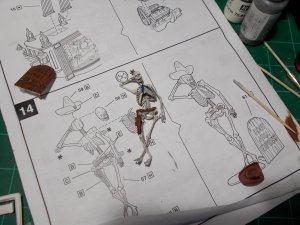

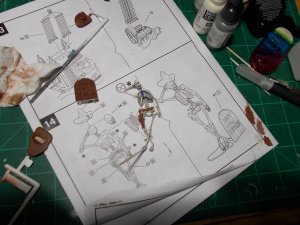

    and details painted, BootHill_41.JPG BootHill_42.JPG

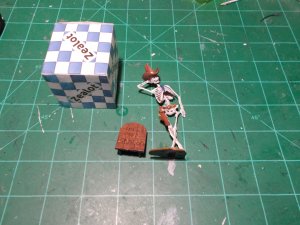

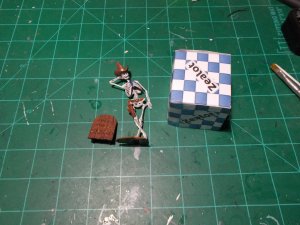

    and done BootHill_43.JPG BootHill_44.JPG

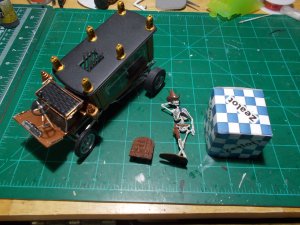

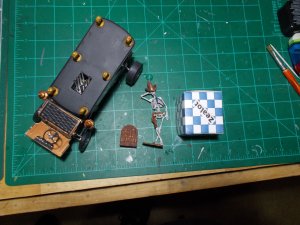

    and a shot of them all together BootHill_45.JPG BootHill_46.JPG

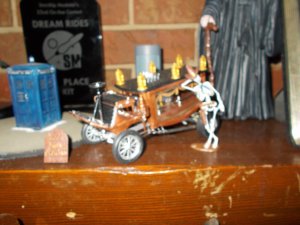

    and a fuzzy flash shot of it on my mantle BootHill_47.JPG
    and now to decide what to do next...
  11. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,686
    Likes Received:
    3,526

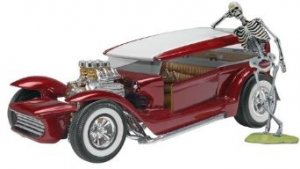

    I should be getting "Li'l Coffin" in this Friday, or Monday. I plan to reverse engineer it into paper! I built this model around 5 times when iwas a kid. I would either give it to a brother or friend, then realize I wanted another one. :) Lil.jpg
  12. micahrogers

    micahrogers ...And the Wife...

    Joined:
    Jul 12, 2012
    Messages:
    1,122
    Likes Received:
    386
    My only multi build kits so far have been the revel 1/72nd SR-71, built about 4 different times, the Monogram 1/48th P-51, built at least 5 of that one...and the Enterprise Tos 18 inch kit built at least a half dozen... The Refit E... a half dozen times... The E-d 1/1400th built 3 times...

    But I know what ya mean about building them and giving them away then remembering that I wanted it...
  13. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,686
    Likes Received:
    3,526
    You might want a case for the Boot Hill Express, unless you have a very dust free home. :)
  14. carlos filipe

    carlos filipe carlos filipe

    Joined:
    Jun 30, 2011
    Messages:
    235
    Likes Received:
    106
    The skeleton adds a lot of interest to the kit. I wasn't aware it was included in the box.
  15. zathros

    zathros -----SENIOR---- Administrator Moderator

    Joined:
    Apr 6, 2013
    Messages:
    7,686
    Likes Received:
    3,526
    Yes, t still is. I want to make this model out of paper and am trying to think of how I could do it. It has many compound radii. :)
    carlos filipe likes this.
  16. carlos filipe

    carlos filipe carlos filipe

    Joined:
    Jun 30, 2011
    Messages:
    235
    Likes Received:
    106
    To protect models from the dust, I have vitrines. But they are "overbooked". I have to order more, but am with "lack of time" as we say around here....
