1:24 Tardis

Discussion in 'Science Fiction & Fantasy' started by PlutoniumBoss, Jan 8, 2012.

  1. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

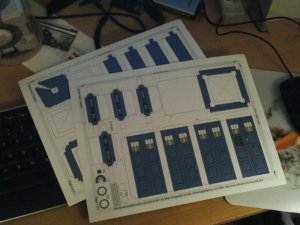

    My first papercraft was a companion cube, now as a warmup before tackling uhu's Heart of Gold I'm going to put together the 1:24 Tardis found on chthulhu.com.

    Attached Files:

  2. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0
    I must say, this is a nice little template. It's got crease guides, so I'm going to crease before I cut. My build isn't going to be precisely 1:24, because I let the print re-size. The scale at the top of the page that says it should print at 7.5 inches measures in at 7 and 5/16, for anyone compelled to do the math.

    Pay attention to the asterisks when pre-creasing. When you see them, refer to the text instructions in the pdf so you don't crease something you shouldn't.

    The roof components, especially piece 8, should have asterisks in a few places but don't. Read step 10 in the instructions before creasing these.
  3. Zathros

    Zathros Guest

    The iconic Tardis. I feel like building one and hyst sticking it i the corner of the hose somewhere. :)
  4. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0
    Well this one's certainly small enough to just put somewhere in the house. I'd be taking pictures but the creases won't show on camera.

    The instructions suggest an optional step of printing an extra copy of the first sheet, and adding another layer of details to the body. But it's such a small scale that I think I can get those details by actually sculpting the paper a little.

    I'm going to lay the body piece over a bit of paperboard and press it down from behind with the rounded end of a small paperclip to create raised features. Maybe also create depressed features by flipping it and pressing from the front.

    The shaping from behind isn't as visible as I'd like, so I'm abandoning it.

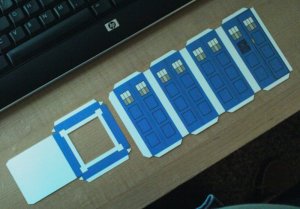

    Here are pieces 1 and 2, ready to go.

    Attached Files:

  5. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

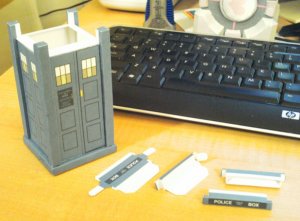

    Part 3 (2x), and the glued/folded part 2.

    I'm cutting wherever possible with scissors, because I find it gives me greater control than an x-acto. Only on certain awkward cuts do I find it better to use an x-acto. As for glue, I find a tiny amount of cyanoacrylate gel goes a long way.

    Attached Files:

  6. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

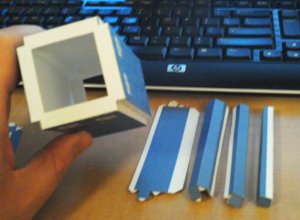

    Here we have parts 3 glued to the top and bottom of the body, and parts 4, the columns, in various states between unfolded and glued.

    Attached Files:

  7. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

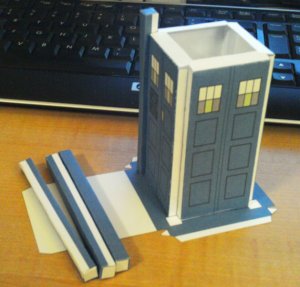

    This'll be the last pic tonight, the body is on the base now and one of the pillars is attached. I'll put the other pillars on and close up the base tonight.

    I would recommend trimming the outside edges of the parts numbered 3 back just slightly, to avoid those edges showing between the base and the body. Also, you might want to edit the base piece to have the blue color overlap the inner area. And be careful to keep the pillars straight, one of mine is twisted slightly along its length.

    Attached Files:

  8. luciencarroll

    luciencarroll Grand Poobah

    Joined:
    Oct 29, 2007
    Messages:
    183
    Likes Received:
    0
    Fantastic work. Point of fact, the trimming and scaling of the base won't be necessary if you do the extra layer of detailing, as this would cover the seems and the white on the base.
    Again nice work
  9. Entlza

    Entlza New Member

    Joined:
    Nov 25, 2011
    Messages:
    8
    Likes Received:
    0
    Gee...

    Gee... It looks smaller on the inside than I remember. :rolleyes:
  10. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0
    I tried to find a template for one that was bigger on the inside, but alas, I'm forced to simply make the interior and exterior as separate models.

    Attached Files:

  11. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

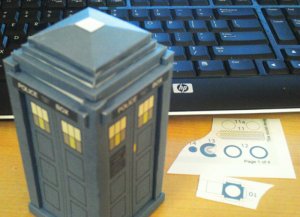

    Signs on the body and roof parts cut out.

    Attached Files:

  12. luciencarroll

    luciencarroll Grand Poobah

    Joined:
    Oct 29, 2007
    Messages:
    183
    Likes Received:
    0
    Nice it is really coming along. I think I am going to have to do another one of these soon.
  13. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0
    And here's the roof resting on top. Not going to glue it down, I think. I'm also not going to take step by step pics of the beacon building, because that'd be tedious, so next pic should be finished product.

    Attached Files:

  14. inky

    inky Member

    Joined:
    Jun 24, 2011
    Messages:
    379
    Likes Received:
    9
    Your doing a grand job on this, keep up the good work.
  15. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0

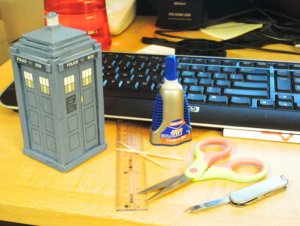

    And there you have it. The finished product, plus the tools I used to make it with. (Sans the x-acto which is still on the table.) The tip of the file on the pocket knife was used to score creases.

    Attached Files:

  16. Zathros

    Zathros Guest

    Nice looking Tardis! :)
  17. PlutoniumBoss

    PlutoniumBoss Member

    Joined:
    Sep 29, 2011
    Messages:
    33
    Likes Received:
    0
  18. Dented Rick

    Dented Rick Human

    Joined:
    Mar 16, 2011
    Messages:
    1,122
    Likes Received:
    169
    Great Job :D


    btw, I LOVE Blaster Master :)
  19. ASC Mclaren

    ASC Mclaren Member

    Joined:
    Nov 19, 2011
    Messages:
    761
    Likes Received:
    204
  20. Millenniumfalsehood

    Millenniumfalsehood Active Member

    Joined:
    Mar 17, 2007
    Messages:
    1,610
    Likes Received:
    94
    Nice build! Now build the interior. :wink:
