Discussion in 'Traction Thoroughfare' started by interurban, Sep 25, 2006.

  1. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    I think it prudent to keep all real thing Traction / Interurban / electric Railways together in this newly created Traction Throughfare, If I am wrong please tell me and I will post in Real thing Canadian.

    So here are three wonderfull photos from the bygone age of the London and Port Stanley electric railway.
    They only built and operated three of these.
    Here they are earning revenue a long time ago.
    --------------------------------------------------------------------------------------------------------

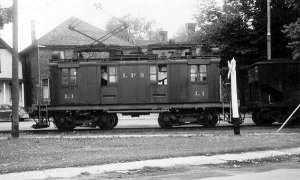

    The first picture is of LP 1.
    from Bill Volkman collection.

    Attached Files:

  2. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

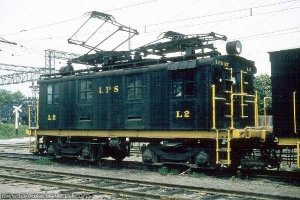

    Now we will see her sister.
    LP 2 from Brian Switzer collection

    Attached Files:

  3. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

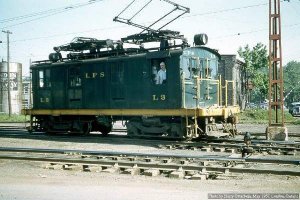

    And here is there other sister
    LP3.

    again from the Brian switzer collection.

    Lovely box motors .

    These are a must to model.

    Attached Files:

  4. LoudMusic

    LoudMusic Member

    Joined:
    Jul 21, 2006
    Messages:
    655
    Likes Received:
    0
    Whoa ... triplet sisters. It's like a dream come true.
  5. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Chris: back in the 50s, CBC had a children's program called Junior Magazine. One of the regulars was Ross Snetsinger, who did assorted arts and crafts. He was also a rail nut, and an L&PS fan. The day before they cut off the passenger service, he did a feature on it, with lots of film. It was the first I'd heard of it. That summer we went to London, and I went to where the L&PS platform had been in the station. I didn't know that the freight service was still going.
    Ross sent out directions for making a cardboard model of an L&PS coach. I made one, but had to put it over a Lionel gondola to get wheels.
  6. shaygetz

    shaygetz Active Member

    Joined:
    May 2, 2003
    Messages:
    3,877
    Likes Received:
    0
    Crispy crinkles, Chris...just when I decided to keep my MDC/Roundhouse Boxcab diesel stock, you come up with these beauts...:thumb:
  7. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Thanks guys, David I have a load of memorabilia of the L&PS and picking more up on Friday next.
    I will proberly donate most of it to the lads in Port Stanley for their museum.
    Meanwhile.

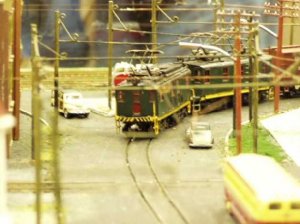

    Here my scratchbuilt attemps of those box motors.:)

    Attached Files:

  8. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

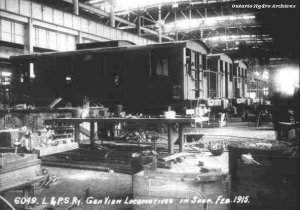

    under construction

    The only picture that I know of showing these Sisters being built.

    1,2,3.

    Attached Files:

    • L123.jpg
      File size:
      40.1 KB
      Views:
      125
  9. spitfire

    spitfire Active Member

    Joined:
    Jul 28, 2002
    Messages:
    3,536
    Likes Received:
    0
    Very cool shots Chris! I agree with your thoughts on keeping traction in one place, so let's leave the thread here.

    Val
  10. green_elite_cab

    green_elite_cab Keep It Moving!

    Joined:
    Apr 4, 2005
    Messages:
    1,942
    Likes Received:
    0
    thats so awesome!
  11. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    I have a question. Why are there 2 pantagraphs? Wouldn't one work?

    BTW, these are traction related questions, so...
  12. 60103

    60103 Pooh Bah

    Joined:
    Mar 25, 2002
    Messages:
    5,135
    Likes Received:
    0
    Running under wire there was always the chance that a pantograph would catch in the wire and pull off. When mainline urunning they would usually use the rear pantograph so that if it caught, the other one wouldn't get pulled off as well.
  13. zedob

    zedob Member

    Joined:
    Dec 26, 2004
    Messages:
    795
    Likes Received:
    0
    Thanks 60103 , that makes sense. Learn a new thing everyday.
  14. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    I think the units were built with a lot power to gain that, more draw from the wire is needed so two pans would also give the option.
  15. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0
    Just to finish this off with a bit of interesting info taken from .

    The London & Port Stanley Railway Vol 2.
    By the laye Leslie Torrens.
    He really loved this Railway .


    So here we are.

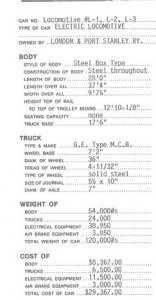

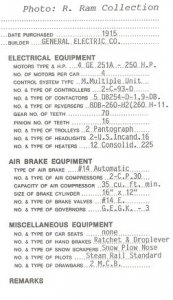

    First the specs of 1,2,3.

    Attached Files:

  16. interurban

    interurban Active Member

    Joined:
    Aug 22, 2002
    Messages:
    4,480
    Likes Received:
    0

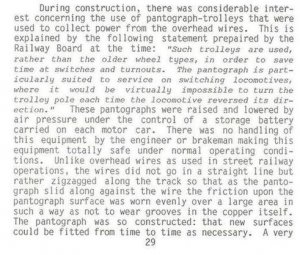

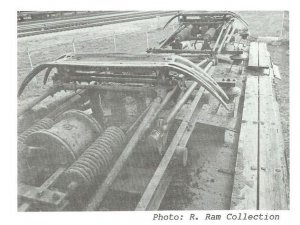

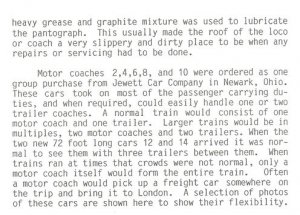

    Here is a write up of why they choose to operate Pantographs.

    I hope this has got you interested in a fine old RR.
    I do recommend you buying Leslie J Torrens 3 Volume book, not expensive, but Mr Torrens put his all into this project. I wish I had met him

    Attached Files:
